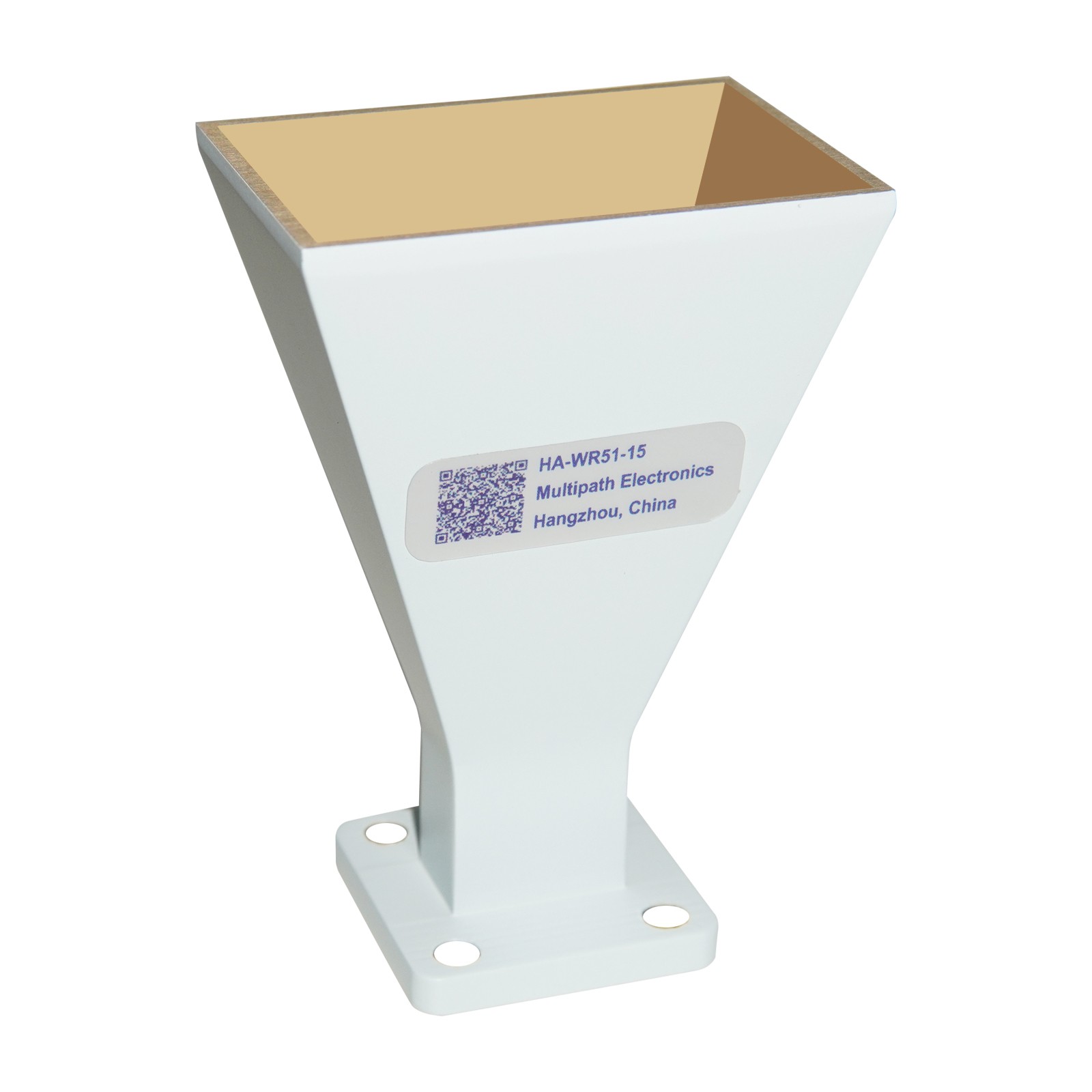

WR51 Standard Gain Horn Antenna Operating 14.5 - 22.0 GHz, 15 dBi Nominal Gain

In Stock and Shipped Same Day!

  • Product Features

    Symmetrical BeamwidthOur horn antennas exhibit highly symmetrical E- and H-plane beamwidths, making them exceptionally well-suited for applications in microwave test systems, reconfigurable intelligent metasurfaces (RIS), transmitarrays, reflectarrays, and more.

    Stable Gain with FrequencyThe antennas have undergone meticulous calibration, resulting in minimal fluctuations in gain curves across the entire operating frequency range.

    Low Return Loss/VSWRLeveraging high-performance RF connectors and precision design, our antennas boast low return loss and excellent Voltage Standing Wave Ratio (VSWR) characteristics.

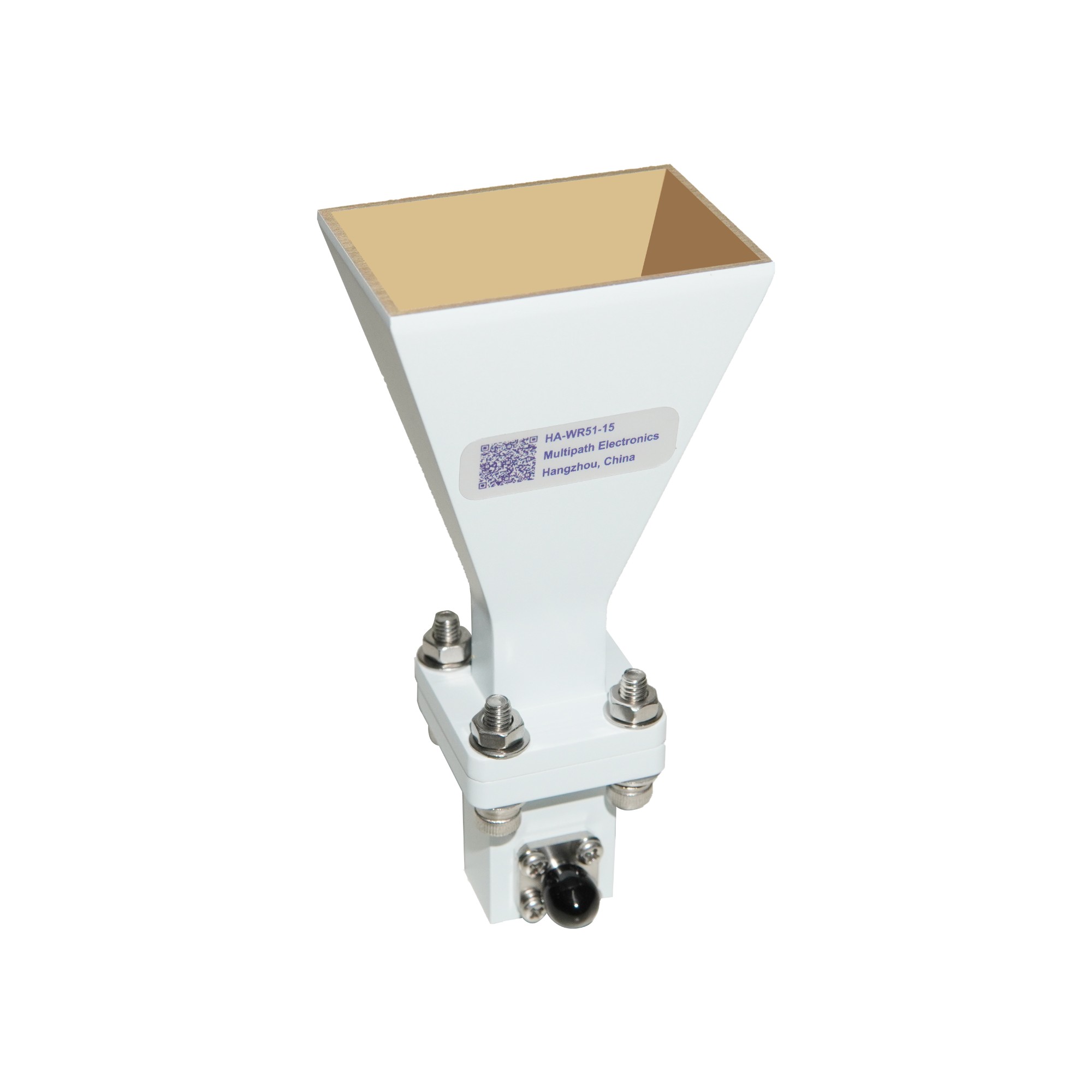

    Lightweight for Easy HandlingOur horn antennas are engineered to be lightweight, ensuring effortless handling. Additionally, we offer optional complete forming mounting systems integrated with waveguide to coaxial adapters, L-type, and round mounting brackets.

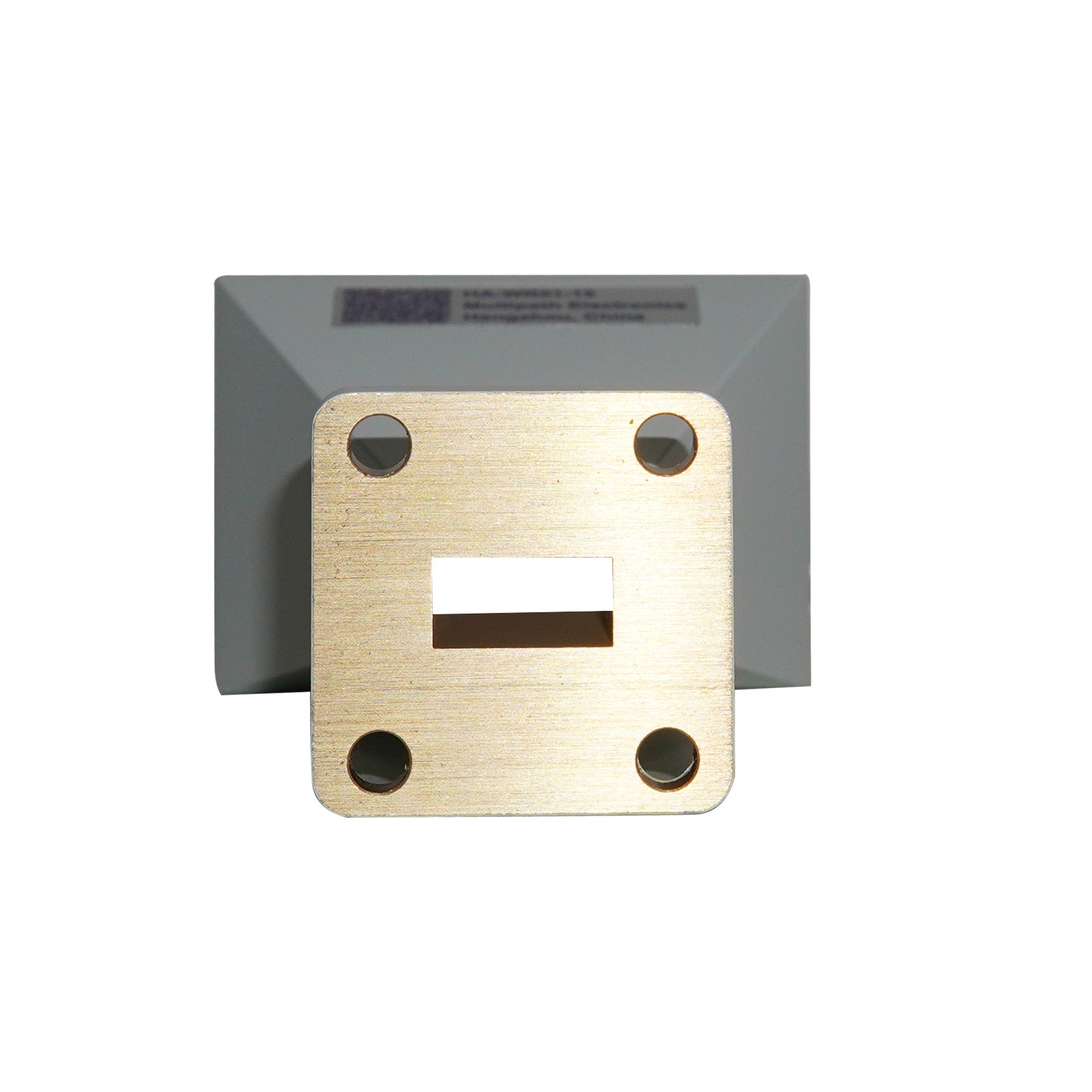

    High RepeatabilityDesigned with a robust and rigid mechanical structure, our horn antennas feature standard flange interfaces for precise centering, precision pins for accurate polarization alignment, and are precision machined with high-reliability coaxial connectors for utmost repeatability.
